Los carros de transporte de la serie POWER-Skate® se caracterizan por lo siguiente:

  • Diseño compacto con pequeñas dimensiones externas
  • Facilidad de dirección gracias al control proporcional directo
  • Potentes motores síncronos con control digital
  • Se puede combinar con todos los carros de la serie XL
  • Ideal para su uso en espacios reducidos (no se requiere equipo de arrastre)

PSI 5‑10

POWER-Skate IDEAL PSI 5‑10
Article Number
10.050.51.10
Max. Capacity
5000 kg
Wheels + Support Wheels
8 + 2 pieza(s)
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 43.5 / Ø 25 mm
Load Area Diámetro
Ø 170 mm
Dimensions: Length x Width x Height
866 x 879 x 110 mm
Peso
93 kg

iN80S

Article Number
10.080.01.20
Load Areas x Max. Capacity
2 x 4000 kg
Wheels
2 x 4 pieza(s)
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 87 / Ø 25 mm
Load Areas x (Length x Width)
2 x (120 x 220) mm
Adjustability
420 – 1100 mm
Dimensions: Length x Width x Height
291 x 220 x 110 mm
Peso
25 kg

PSI 5‑10 + iN80S Set

POWER-Skate IDEAL PSI 5‑10 + iN80S - Set
Max. Capacity
10000 kg

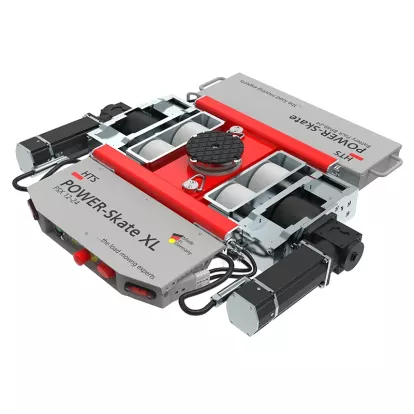

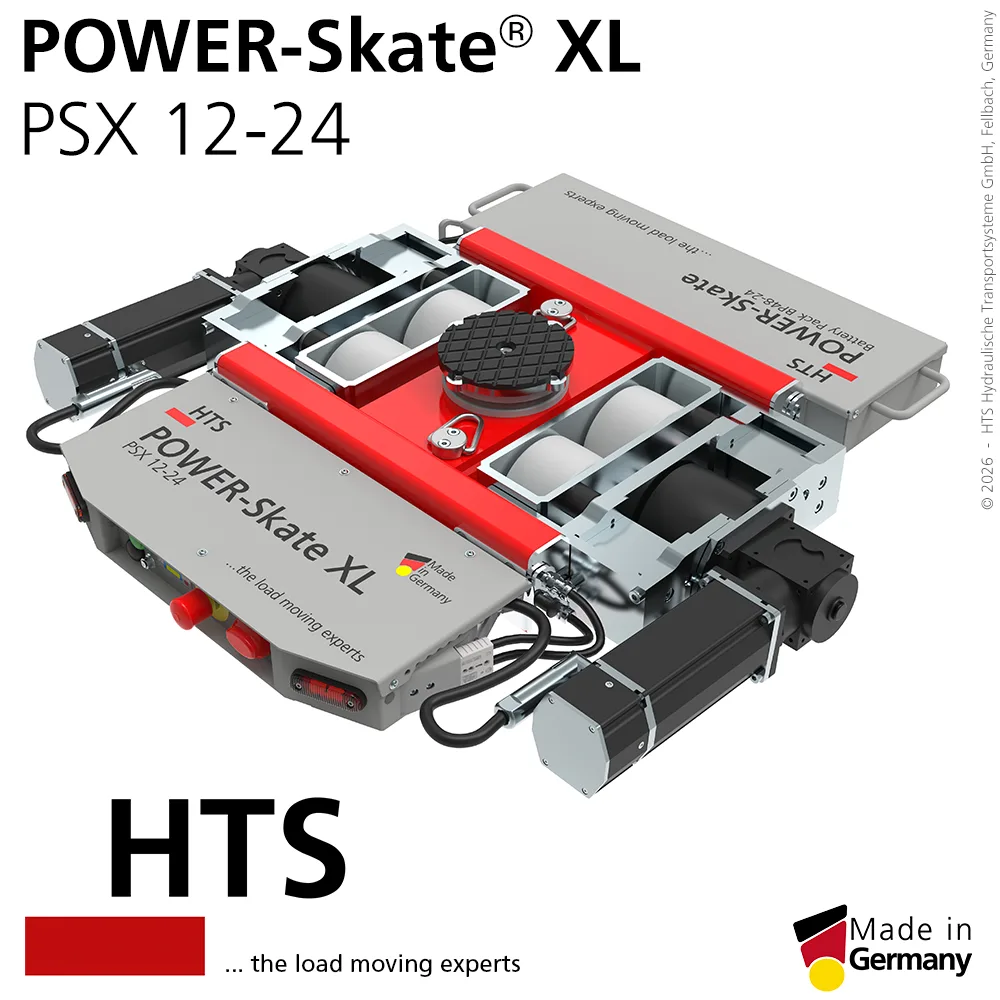

PSX 12‑24

POWER-Skate XL PSX 12-24
Article Number
10.121.51.10
Max. Capacity
12000 kg
Wheels + Support Wheels
4 + 2 pieza(s)
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 140 x 85 / Ø 30 mm
Load Area Diámetro
Ø 170 mm
Dimensions: Length x Width x Height
1047 x 1036 x 180 mm
Peso
175 kg

XN20S‑B

ECO-Skate XL XN20S-B
Article Number
10.200.55.20
Load Areas x Max. Capacity
2 x 10000 kg
Wheels
2 x 4 pieza(s)
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 87 / Ø 25 mm
Load Areas x (Length x Width)
2 x (320 x 192) mm
Adjustability
220 – 1800 mm
Dimensions: Length x Width x Height
464 x 215 x 180 mm
Peso
80 kg

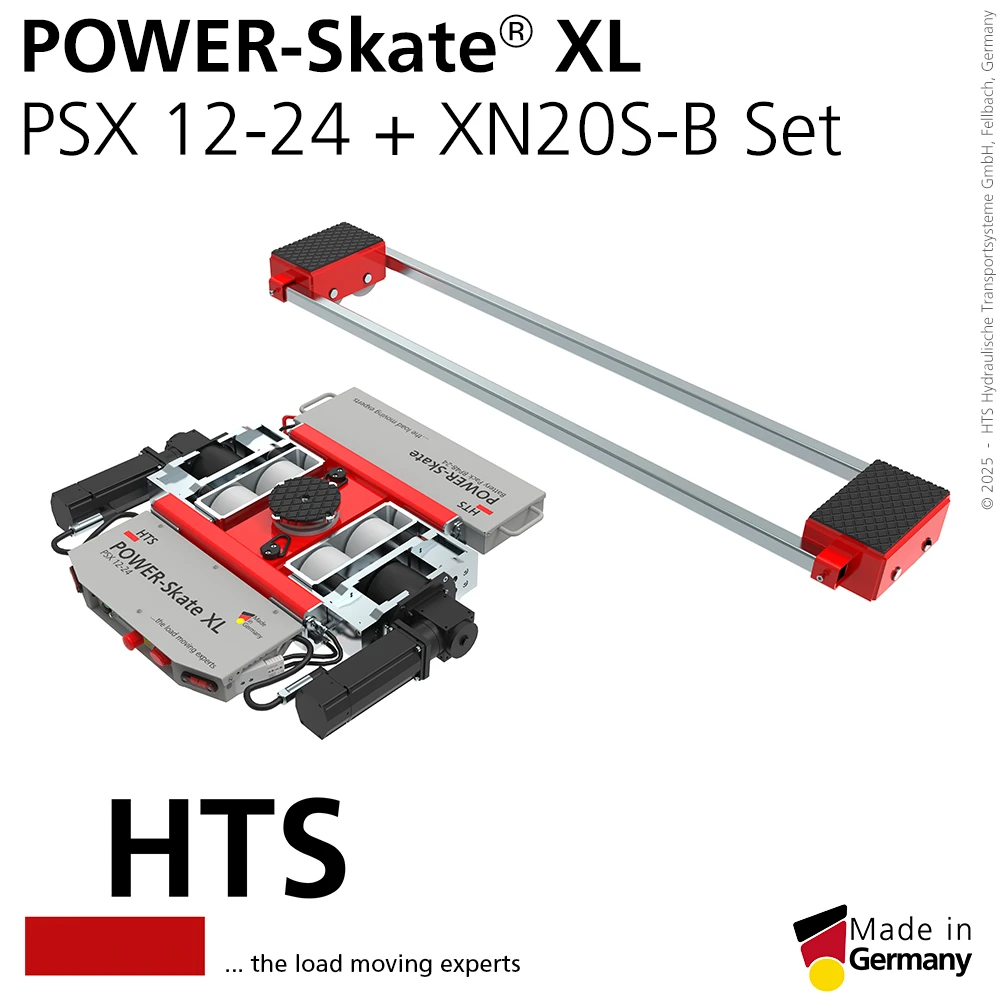

PSX 12‑24 + XN20S‑B Set

POWER-Skate XL PSX 12-24 + XN20S-B - Set
Max. Capacity
24000 kg

PSX 20‑40

POWER-Skate XL PSX 20-40
Article Number
10.202.51.10
Max. Capacity
20000 kg
Wheels + Support Wheels
8 + 2 pieza(s)
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 140 x 83 / Ø 30 mm
Load Area Diámetro
Ø 220 mm
Dimensions: Length x Width x Height
1380 x 1000 x 180 mm
Peso
300 kg

XN20S‑B

ECO-Skate XL XN20S-B
Article Number
10.200.55.20
Load Areas x Max. Capacity
2 x 10000 kg
Wheels
2 x 4 pieza(s)
Wheel Size: Outer Diameter x Width / Bearing Diameter
Ø 85 x 87 / Ø 25 mm
Load Areas x (Length x Width)
2 x (320 x 192) mm
Adjustability
220 – 1800 mm
Dimensions: Length x Width x Height
464 x 215 x 180 mm
Peso
80 kg

PSX 20‑40 + XN20S‑B Set

POWER-Skate XL PSX 20-40 + XN20S-B - Set
Max. Capacity
40000 kg
